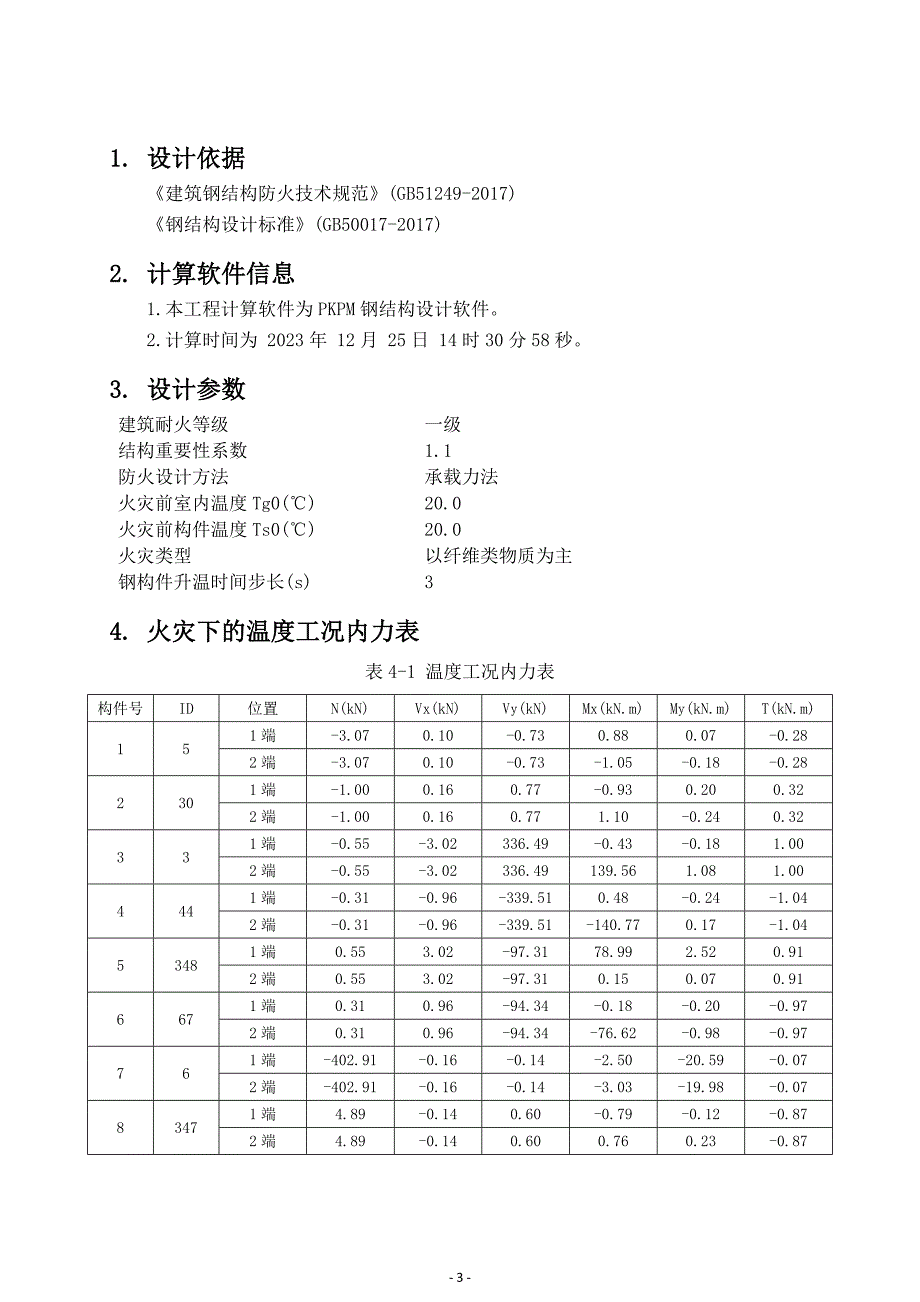

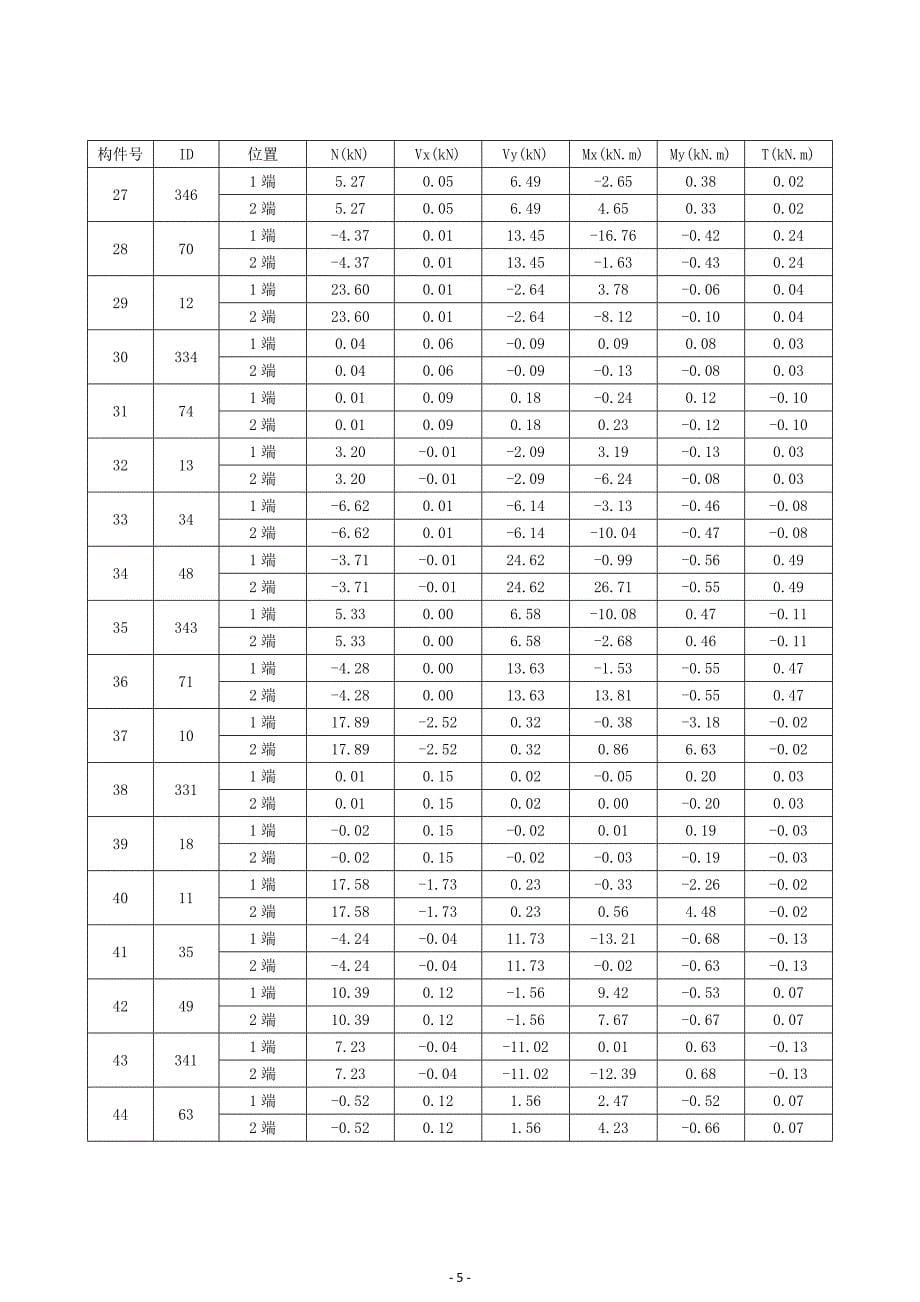

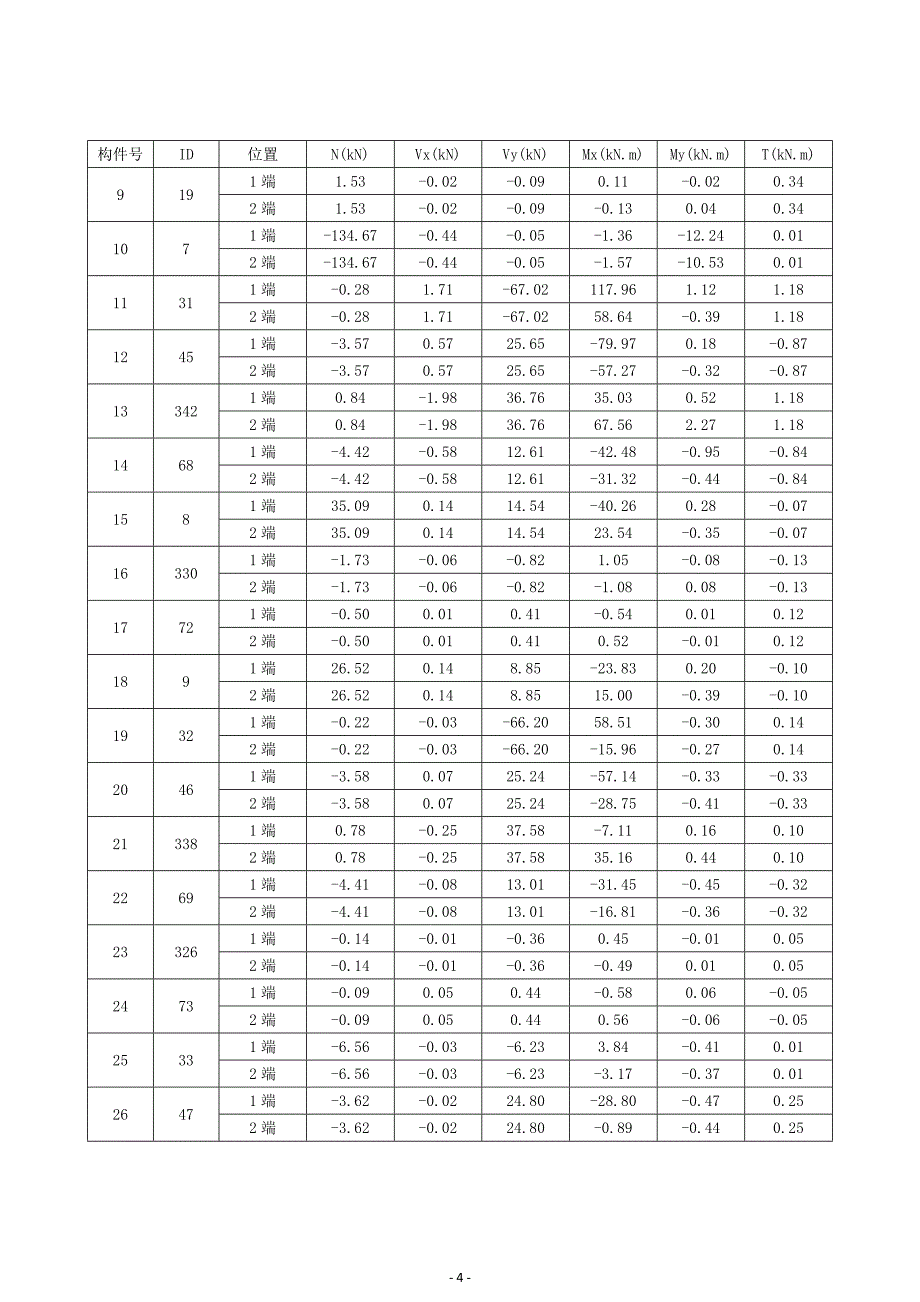

1、连廊一防火计算书项目编号: 项目名称: 森林小学改扩建项目计算人:专业负责人: 校核人:目 录1. 设计依据2. 计算软件信息3. 设计参数4. 火灾下的温度工况内力表5. 组合内力表1. 荷载组合2. 组合内力6. 设计结果表1. 设计依据建筑钢结构防火技术规范(gb51249-2017)钢结构设计标准(gb50017-2017)2. 计算软件信息1.本工程计算软件为pkpm钢结构设计软件。2.计算时间为 2023年 12月 25日 14时30分58秒。3. 设计参数建筑耐火等级一级结构重要性系数1.1防火设计方法承载力法火灾前室内温度tg0()20.0火灾前构件温度ts0()20.0火灾类
